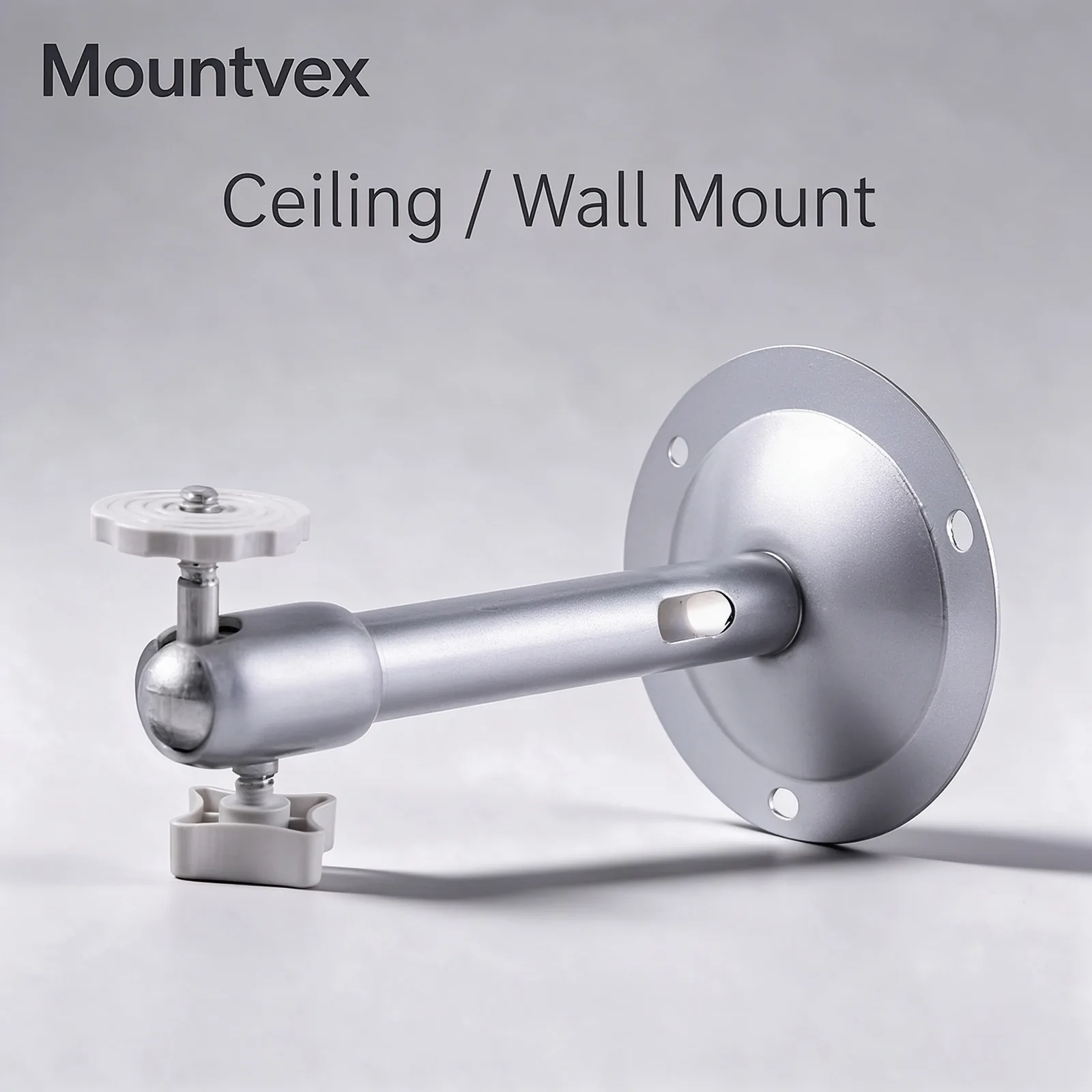

CCTV Camera Mounting BracketsCamera Stand Bracket
Full aluminium stand with a ball-joint head. Stands on its base, fixes to a wall or hangs from a ceiling — in two heights, 170 mm and 220 mm.
- MOQ
- 500 pcs
- Lead time
Photos and drawings are for reference — confirm the interface on the datasheet.Request PDF / STEP file
MOQ
500 pcs
Material
Aluminium alloy
Incoterms
FOB Shenzhen
CCTV Camera Mounting Brackets

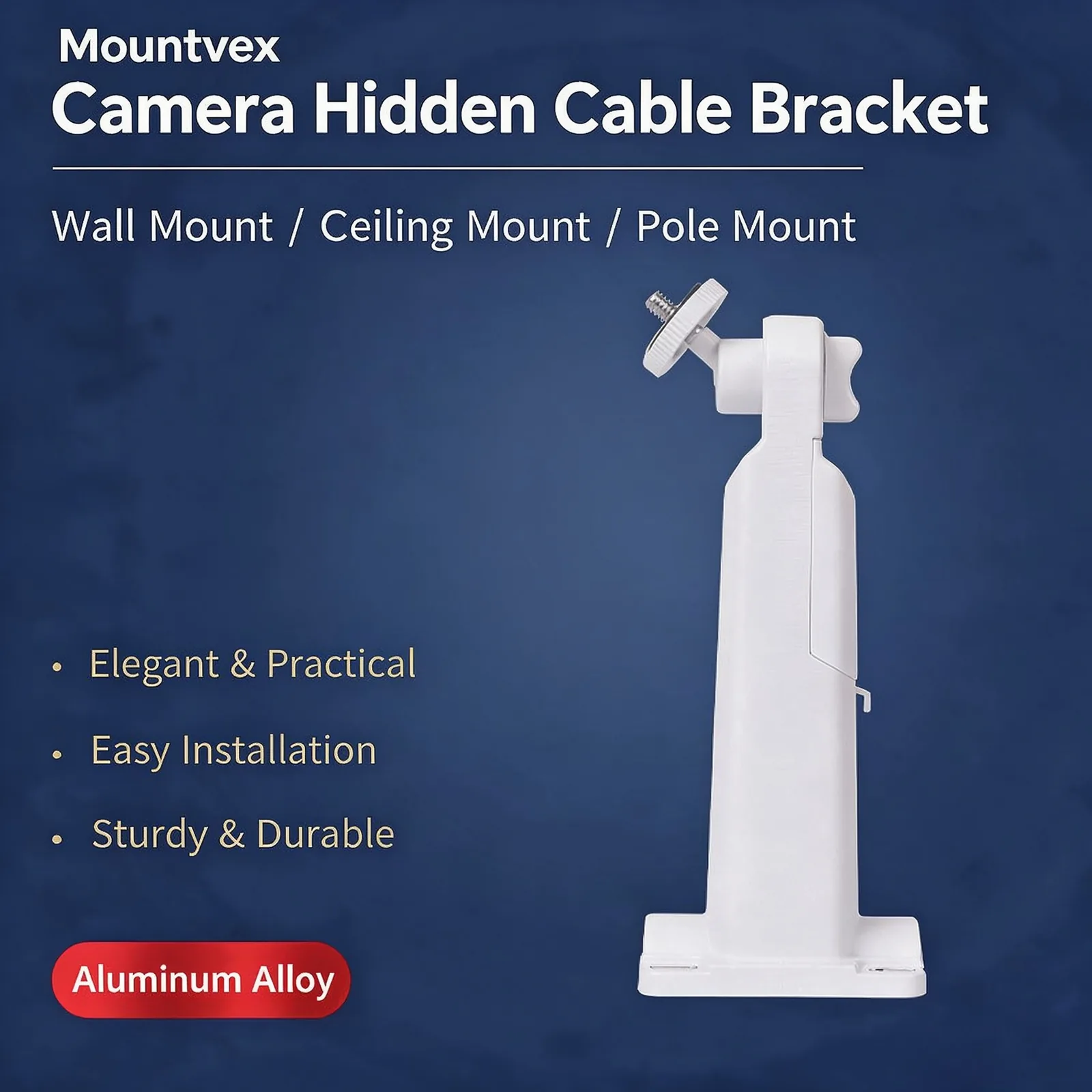

Camera Hidden Cable Bracket
Aluminium wall bracket with a built-in cable channel. The same body mounts to a wall, a ceiling or a pole, and the cable stays hidden inside the arm.
- Material
- Aluminium alloy
- Dimensions
- 180 mm high, 75 × 60 mm base
- MOQ
- 500 pcs
- Incoterms
- FOB Shenzhen / EXW
Logo label on this item?
A printed or dome label with your brand may be possible on this model. It depends on the supplier and on quantity — ask us to confirm before you order.
Overview

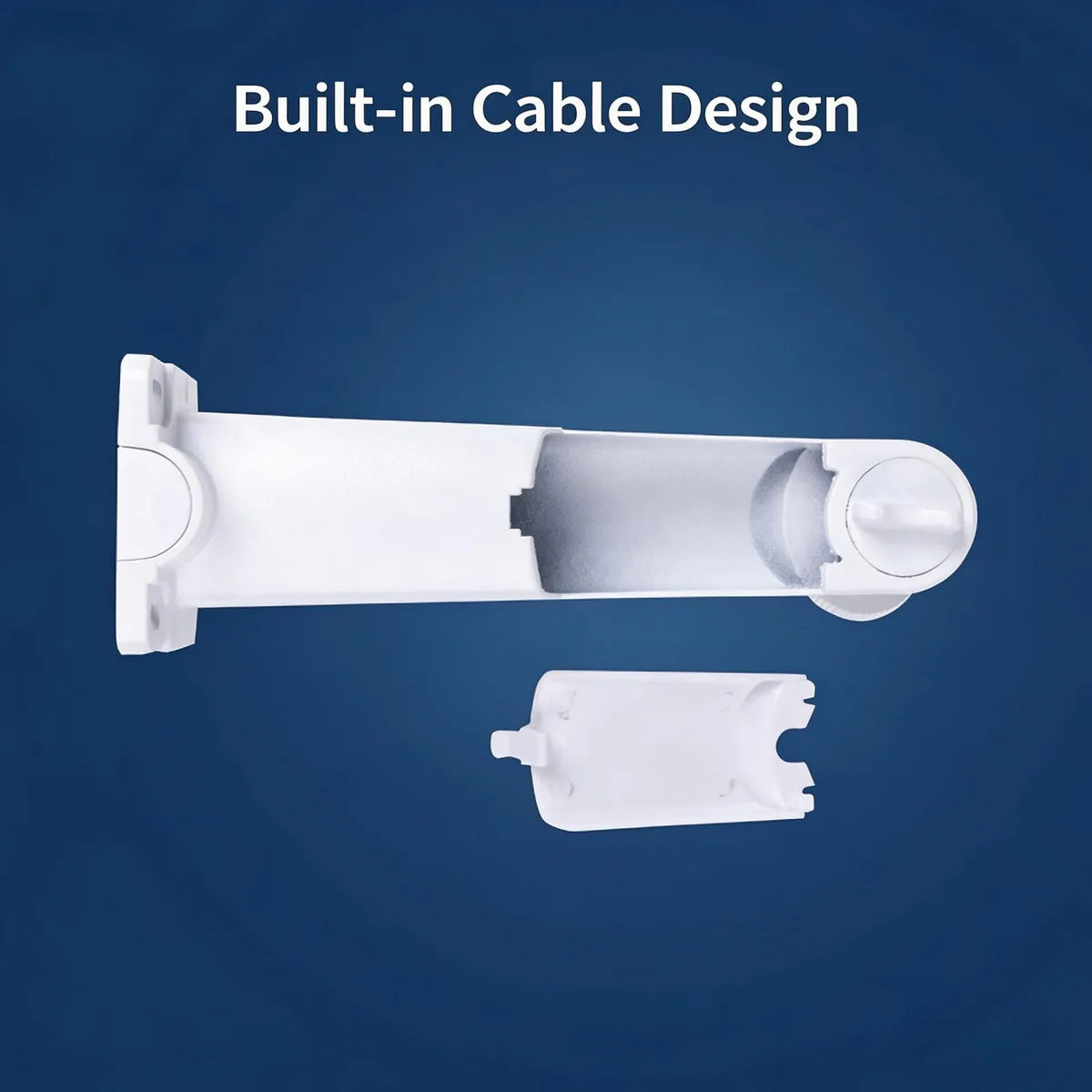

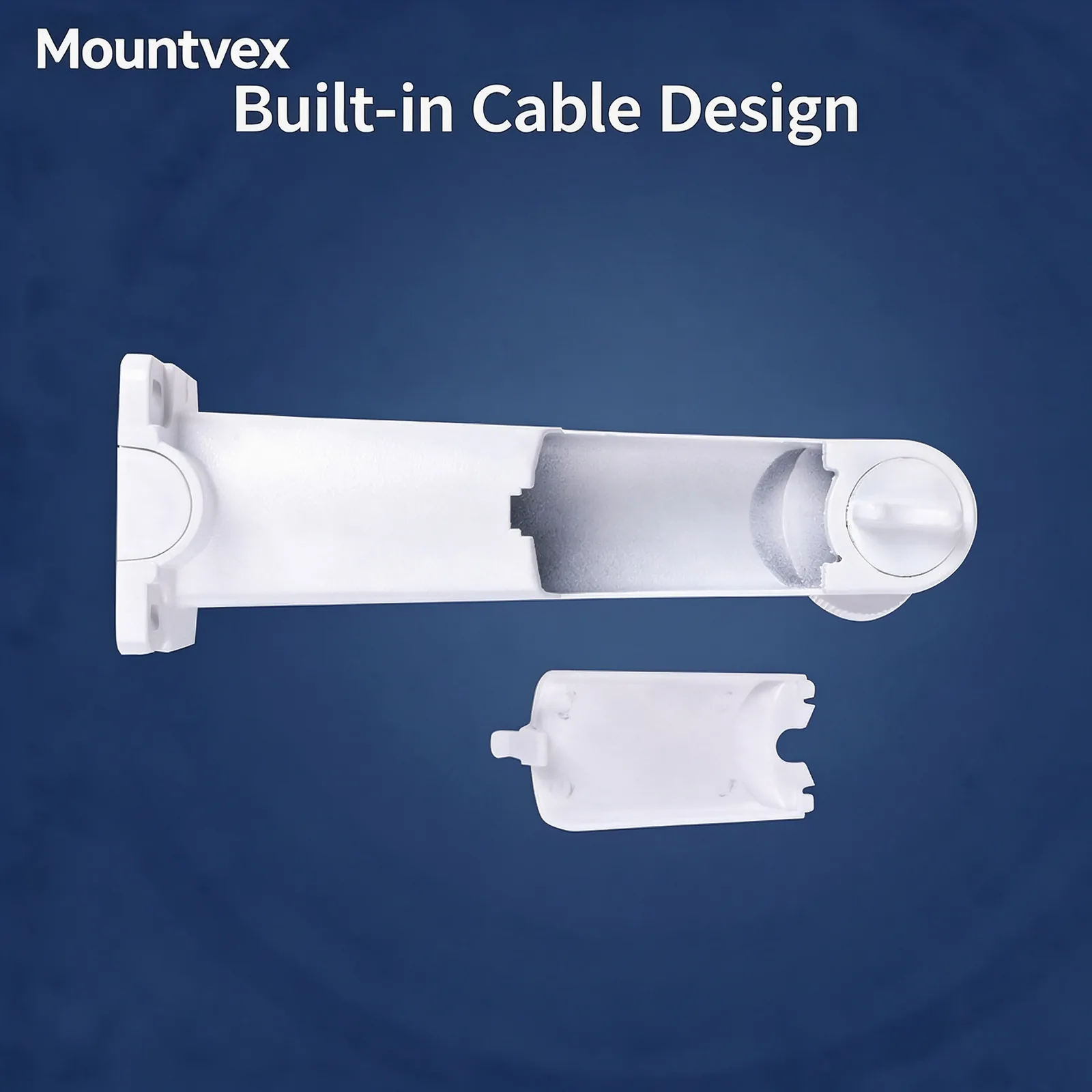

The hidden cable bracket is one aluminium body that turns a camera into a clean installation. The cable runs inside the arm and leaves through the base plate, so nothing is visible on the wall. The cover clips off, which means the cable can be pulled after the bracket is already fixed.
The head carries the camera on a standard thread with a knurled locking wheel, and the joint lets the camera be aimed without tools. The base plate is 75 × 60 mm with slotted fixing holes, so it can be aligned on uneven render or a pre-existing hole pattern.

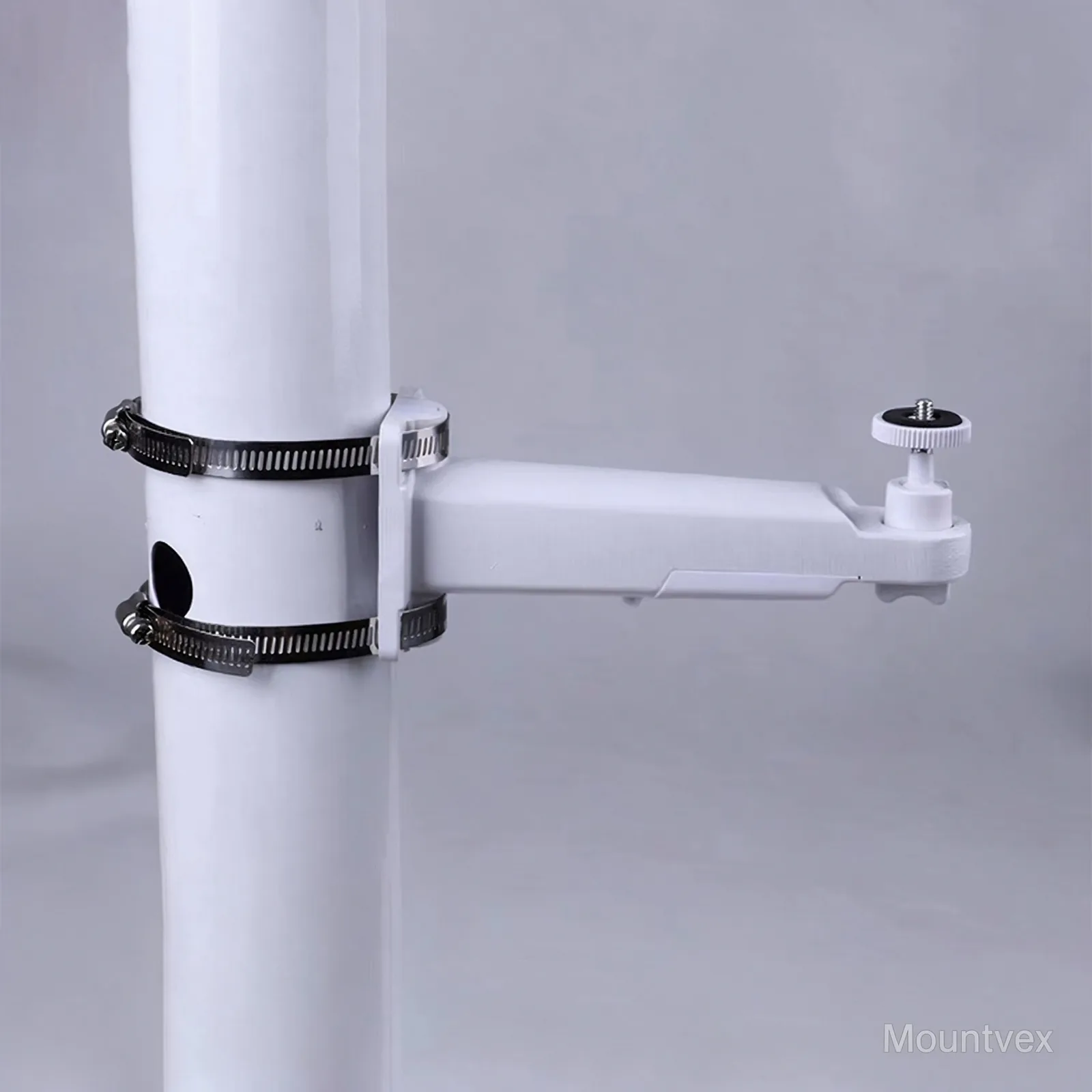

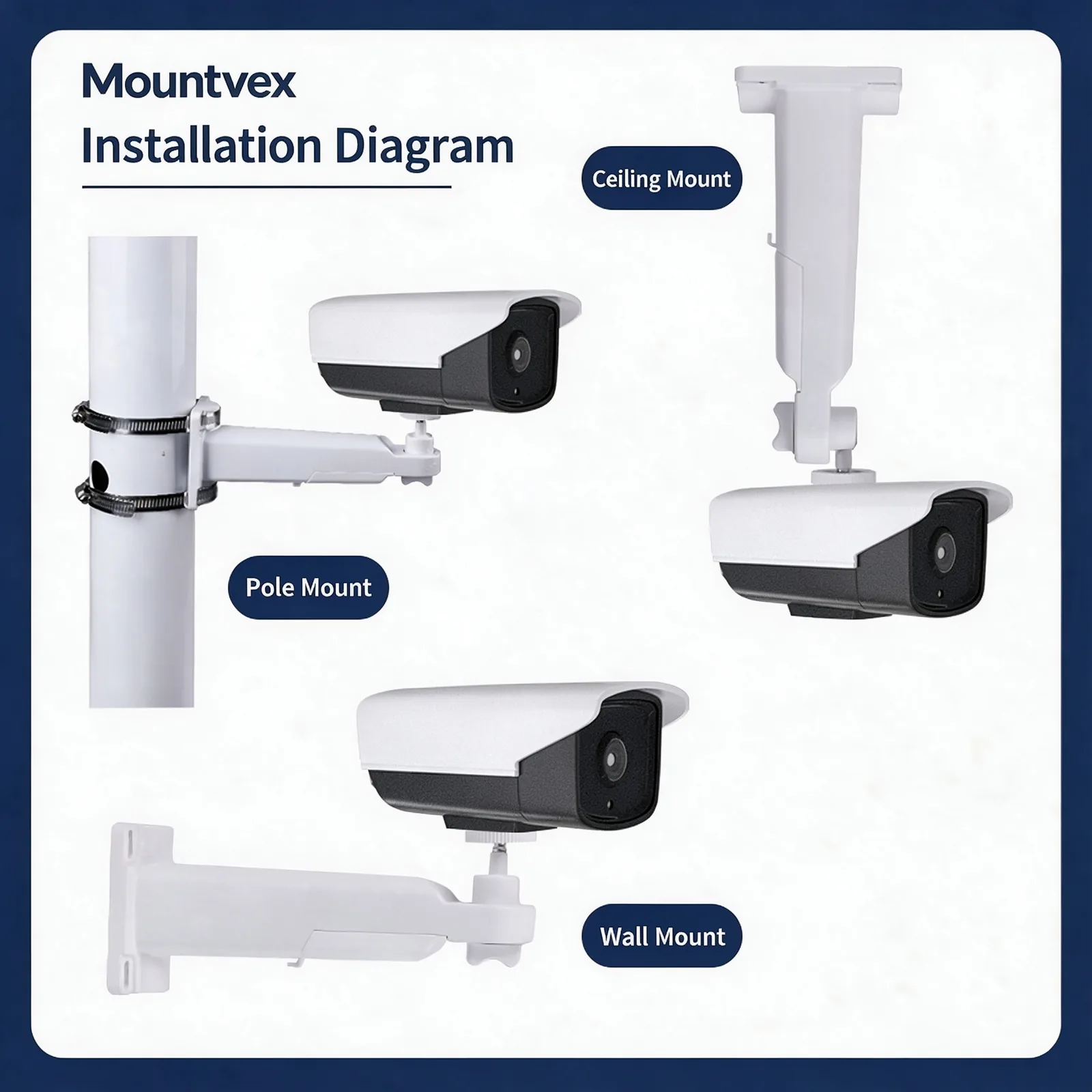

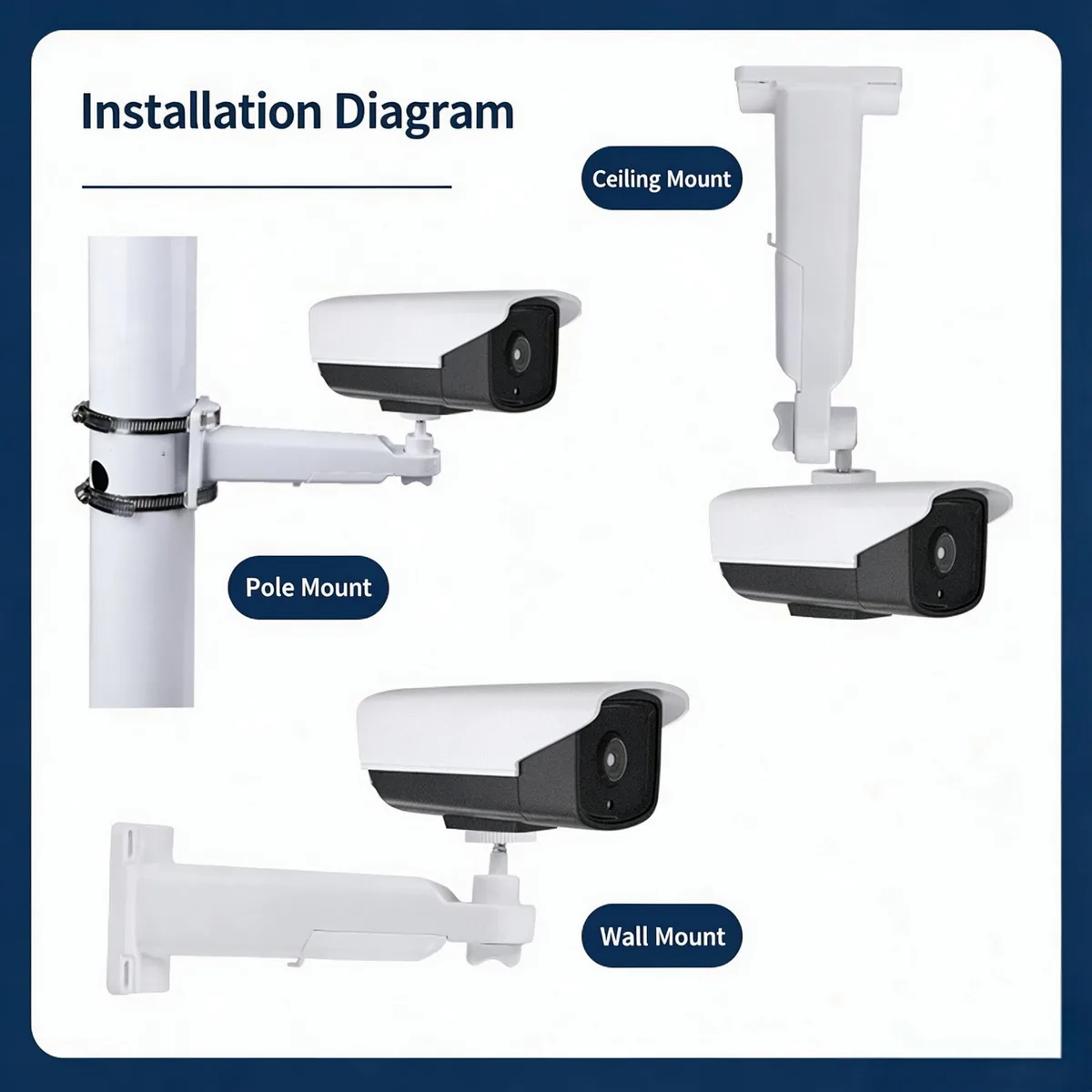

The same body covers three installations: screw the base to a wall, bolt it under a ceiling or soffit, or clamp it to a pole with band clamps. That is one SKU to stock instead of three.
Key features
- Cable runs inside the arm — nothing visible on the wall
- One body for wall, ceiling and pole mounting
- Clip-off cover for wiring after the bracket is fixed
- Adjustable head with knurled locking wheel
- Slotted base plate for uneven surfaces
Specifications
| Category | CCTV Camera Mounting Brackets |
|---|---|
| Material | Aluminium alloy |
| MOQ | 500 pcs |
| Incoterms | FOB Shenzhen / EXW |

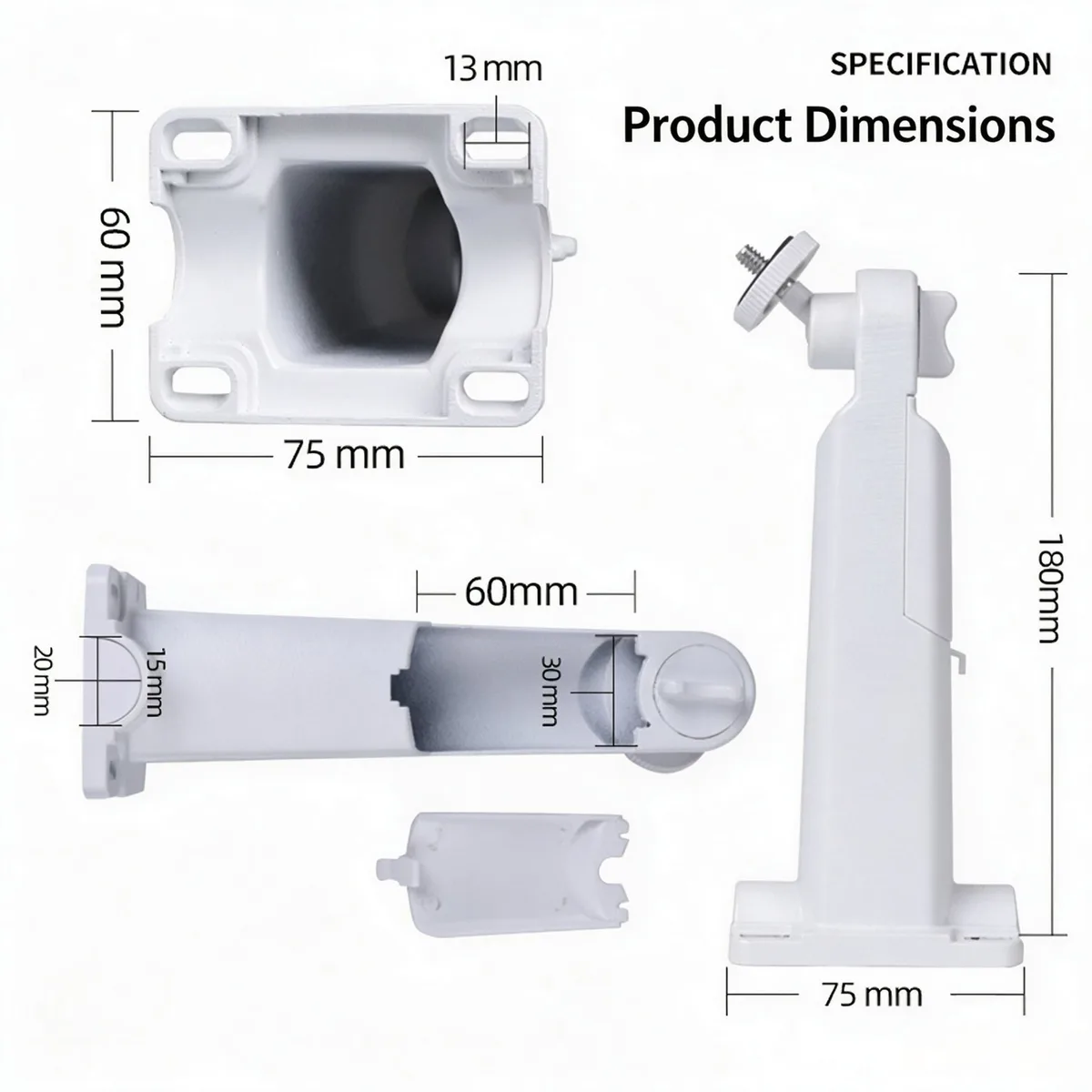

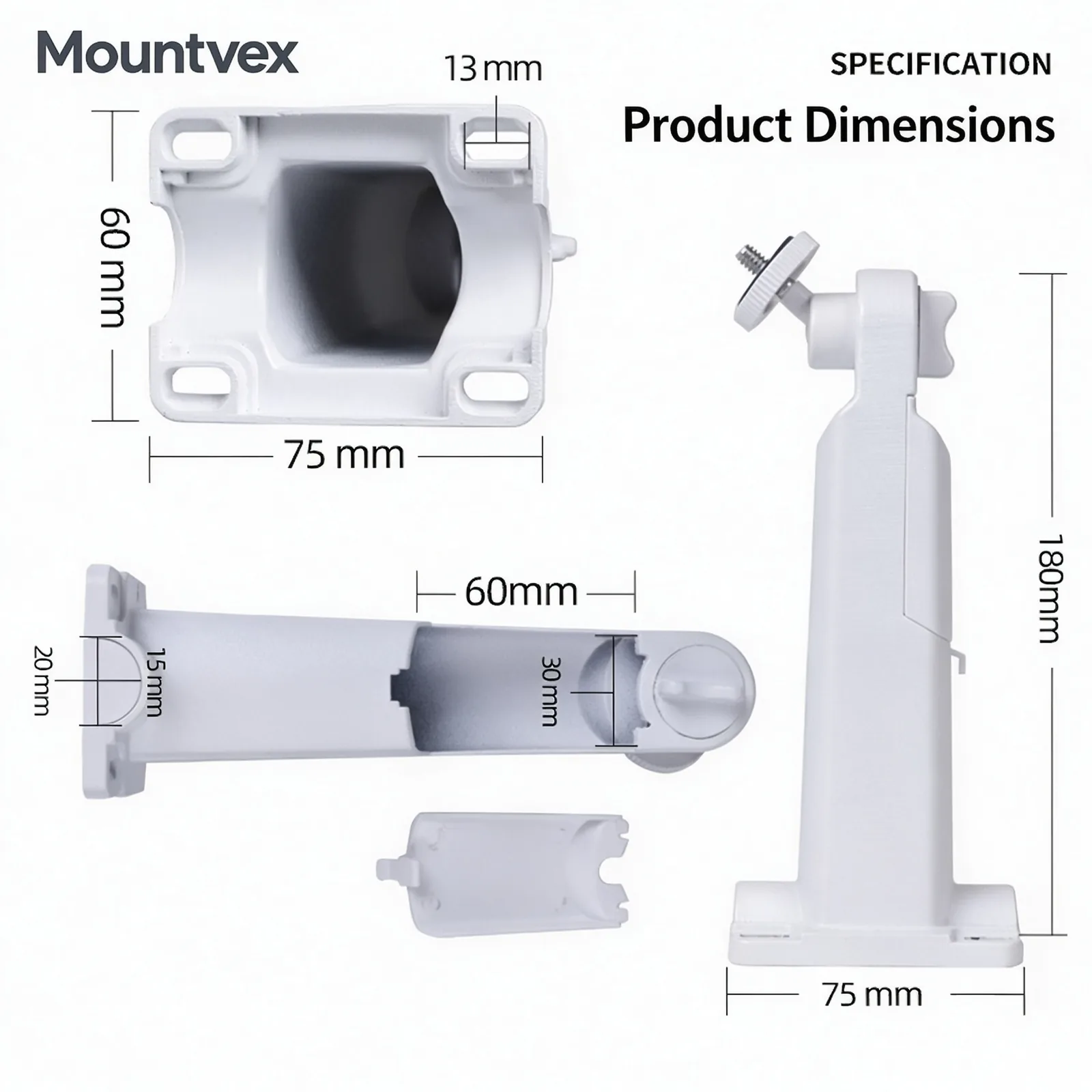

| Base plate | 75 × 60 mm |
| Overall height | 180 mm |
| Mounting slots | 13 mm |
| Pivot boss | Ø 30 mm |
| Cable entry | Ø 15 mm |
| Base flange | 20 mm |
| Mounting options | Wall / ceiling / pole |
| Packing | To be confirmed |
Figures above are the ones confirmed with the supplier. Anything not listed is still open — ask sales and we will confirm it in writing.
